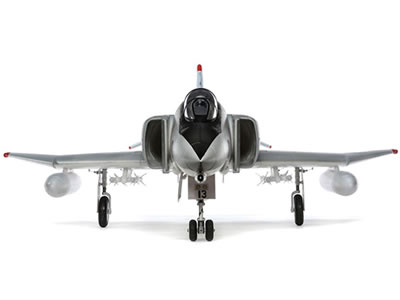

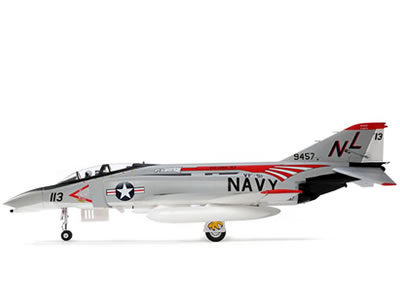

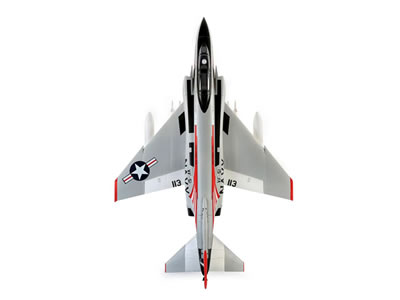

E-flite F-4 Phantom II 80mm BNF Basic Electric Ducted Fan Jet Airplane
1.It requires 6-7+ channel transmitter
2.it requires 6S 22.2V 4000-5000+mAh 30+C LiPo battery with EC5 or IC5 Connector
3.it requires Lipo Battery Charger.
Note:
If your shipment is deliveyellow to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp

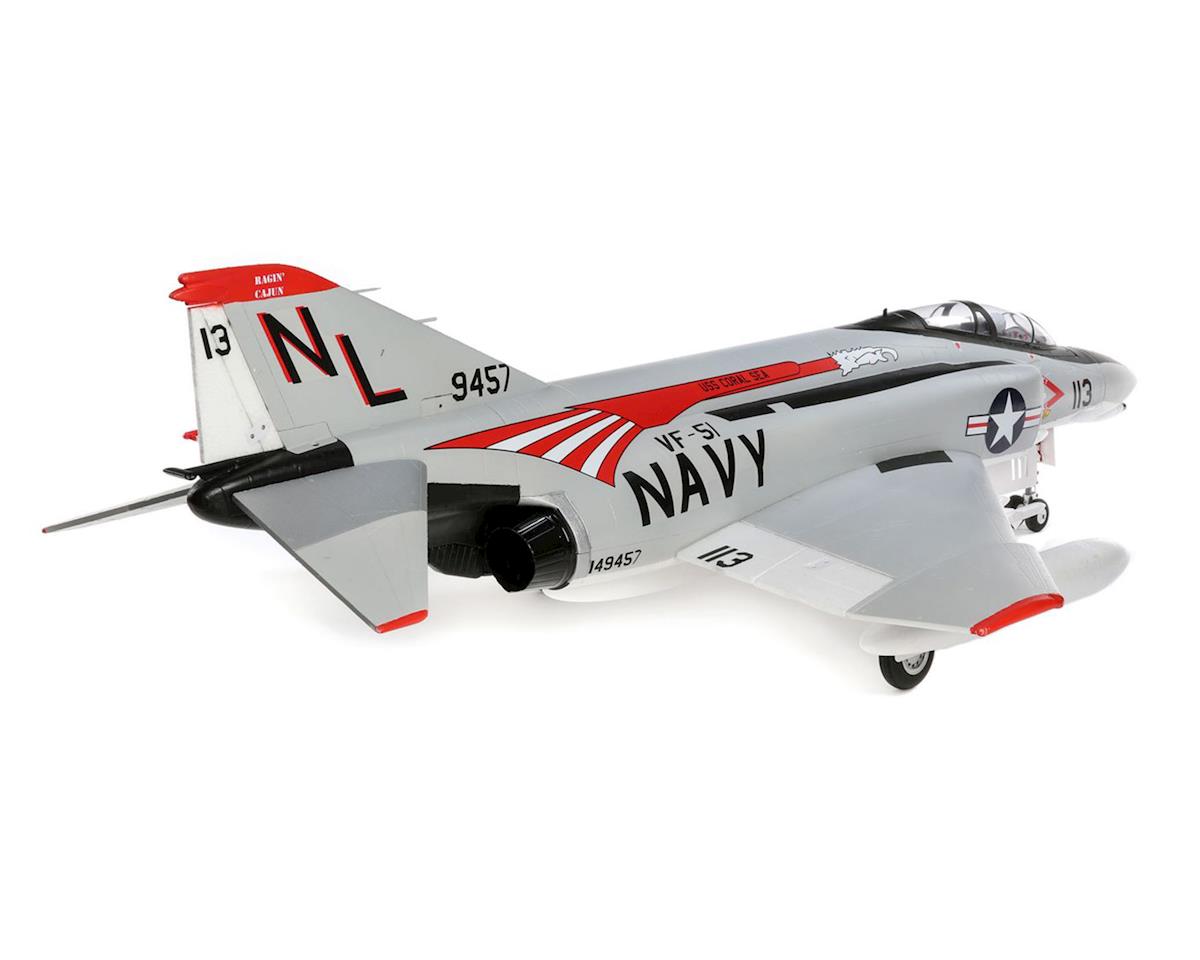

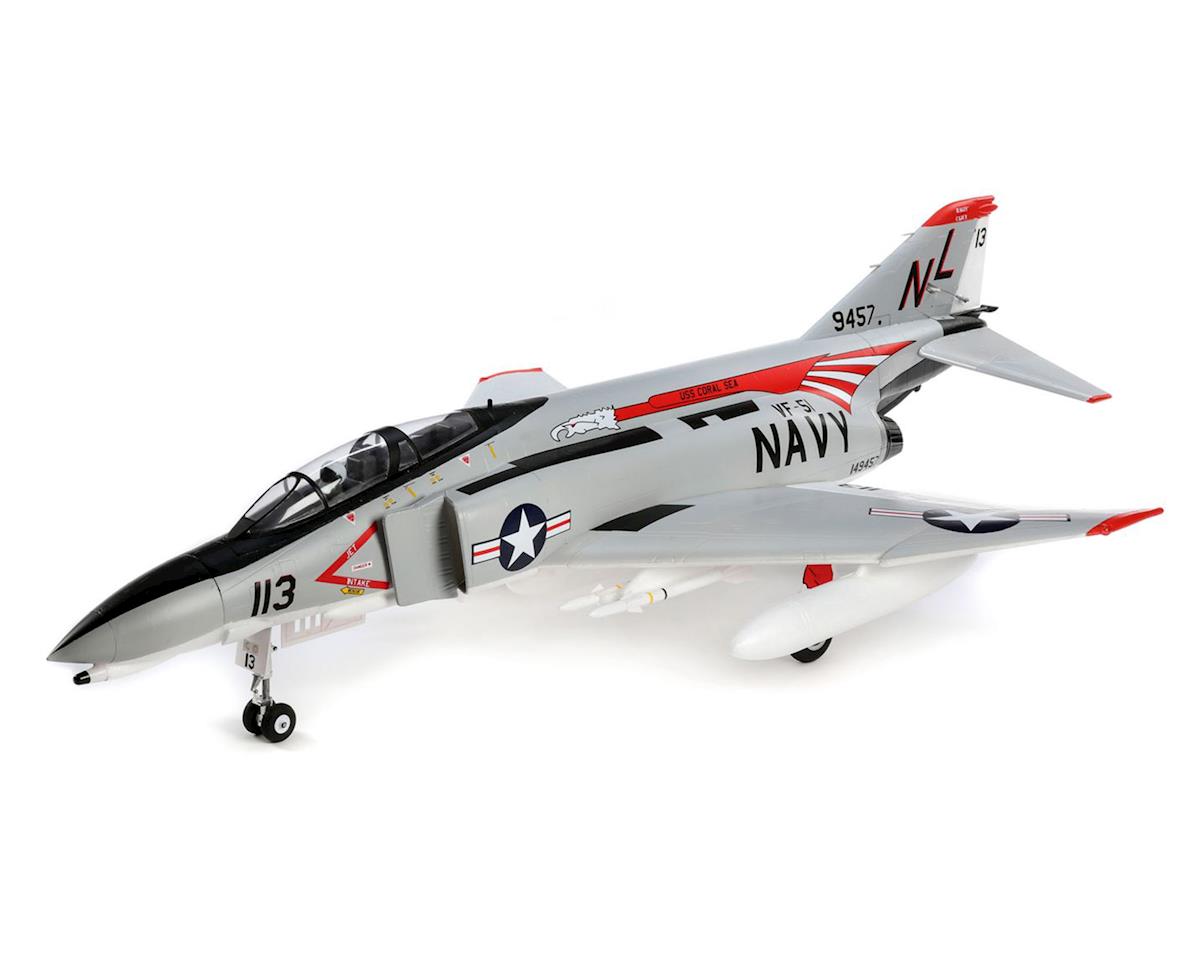

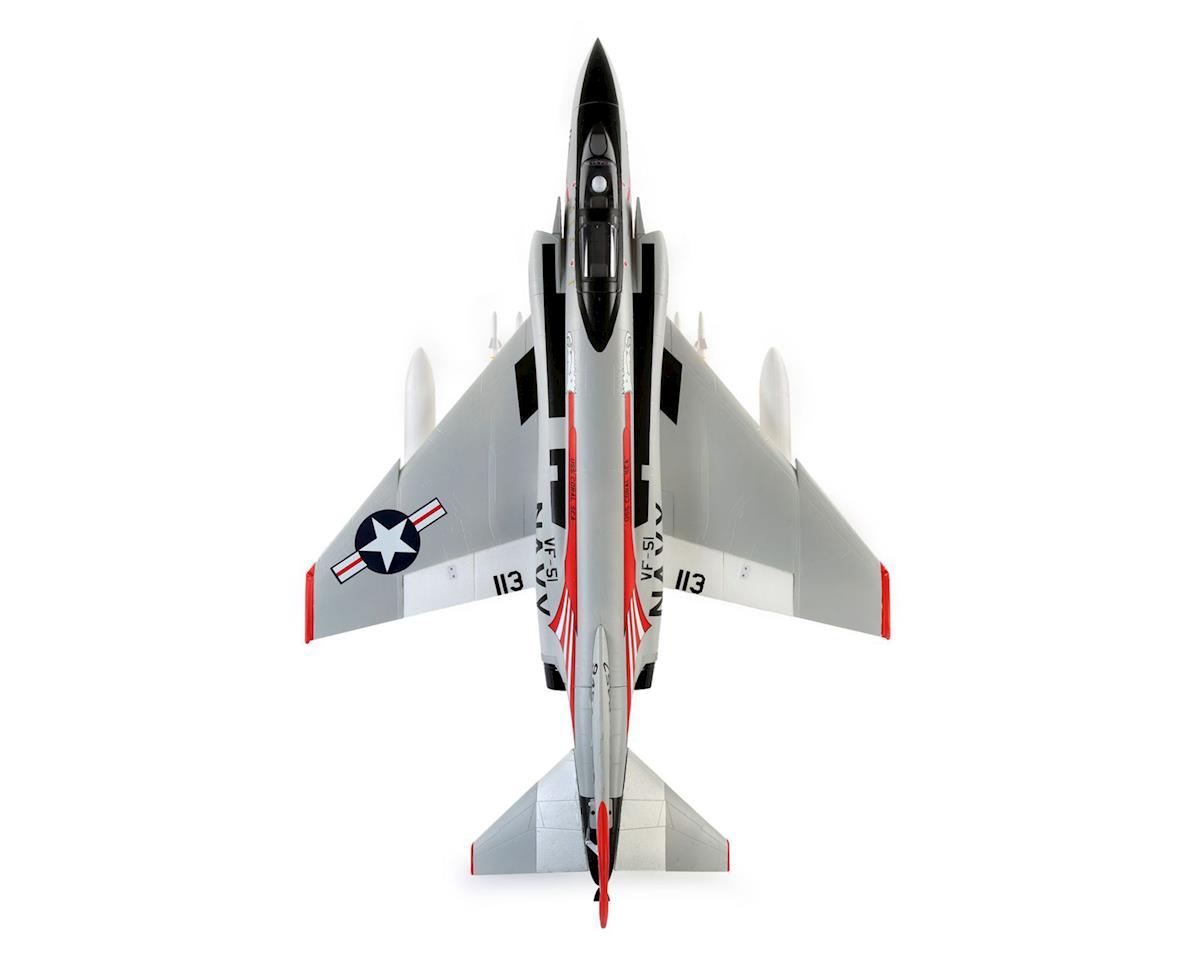

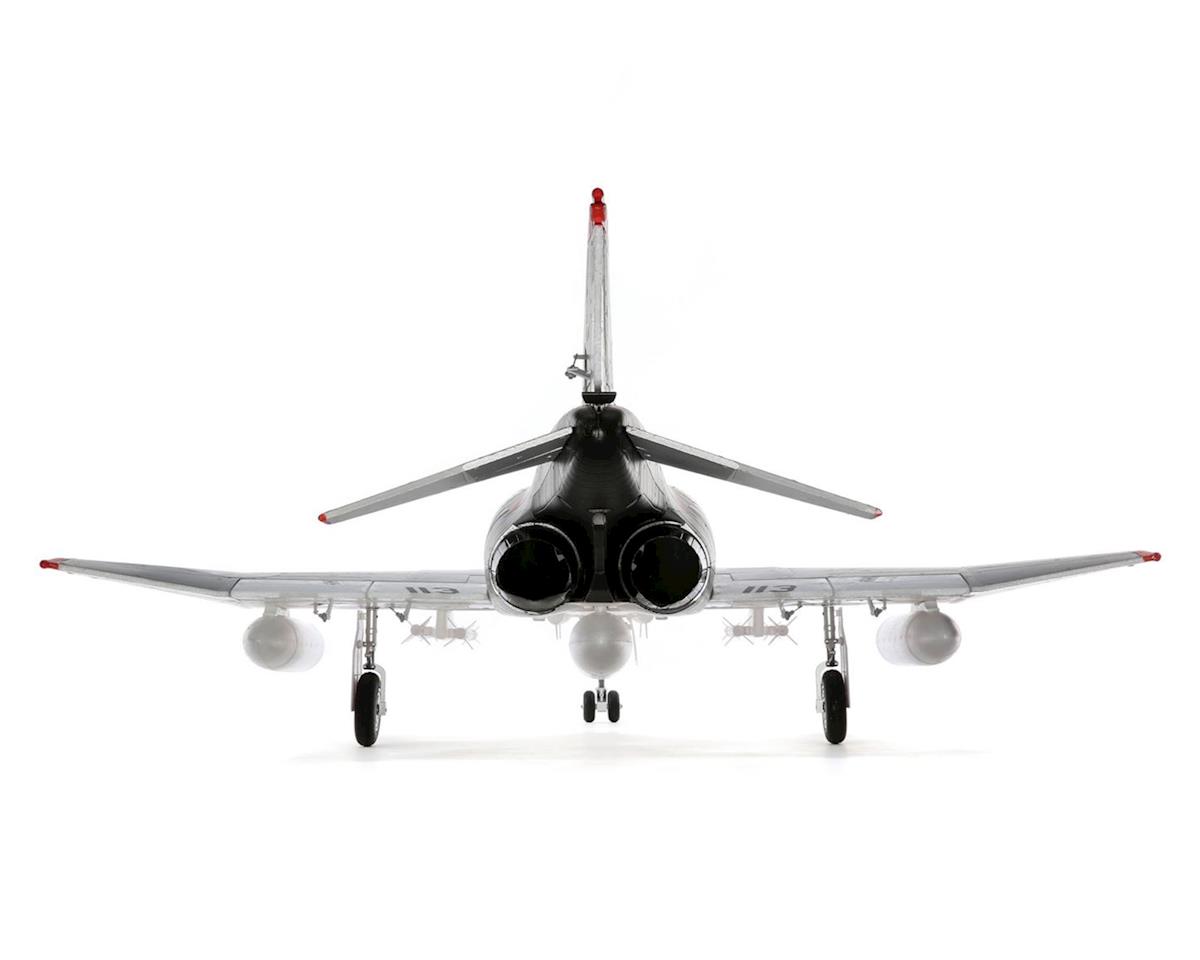

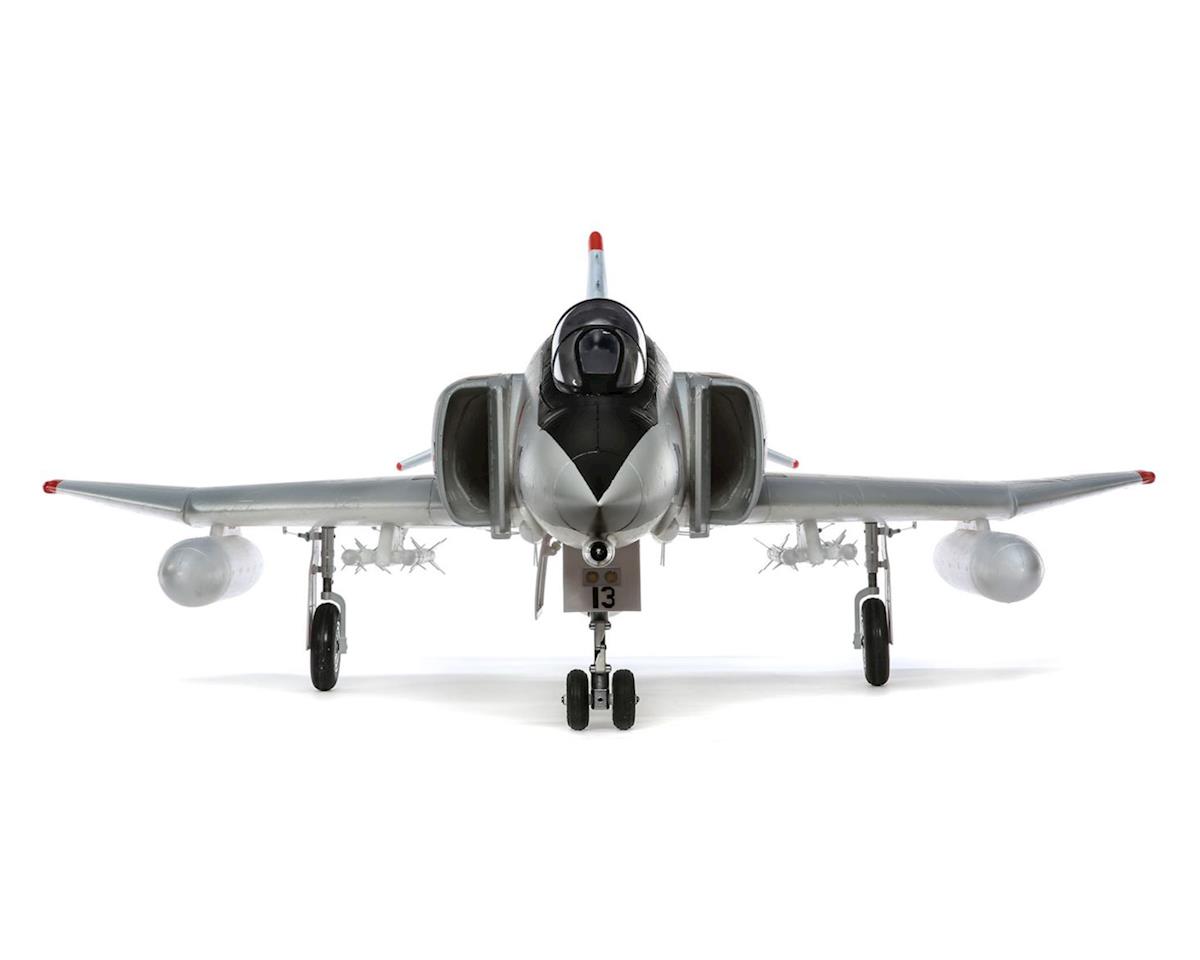

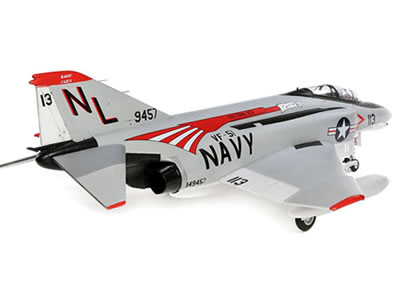

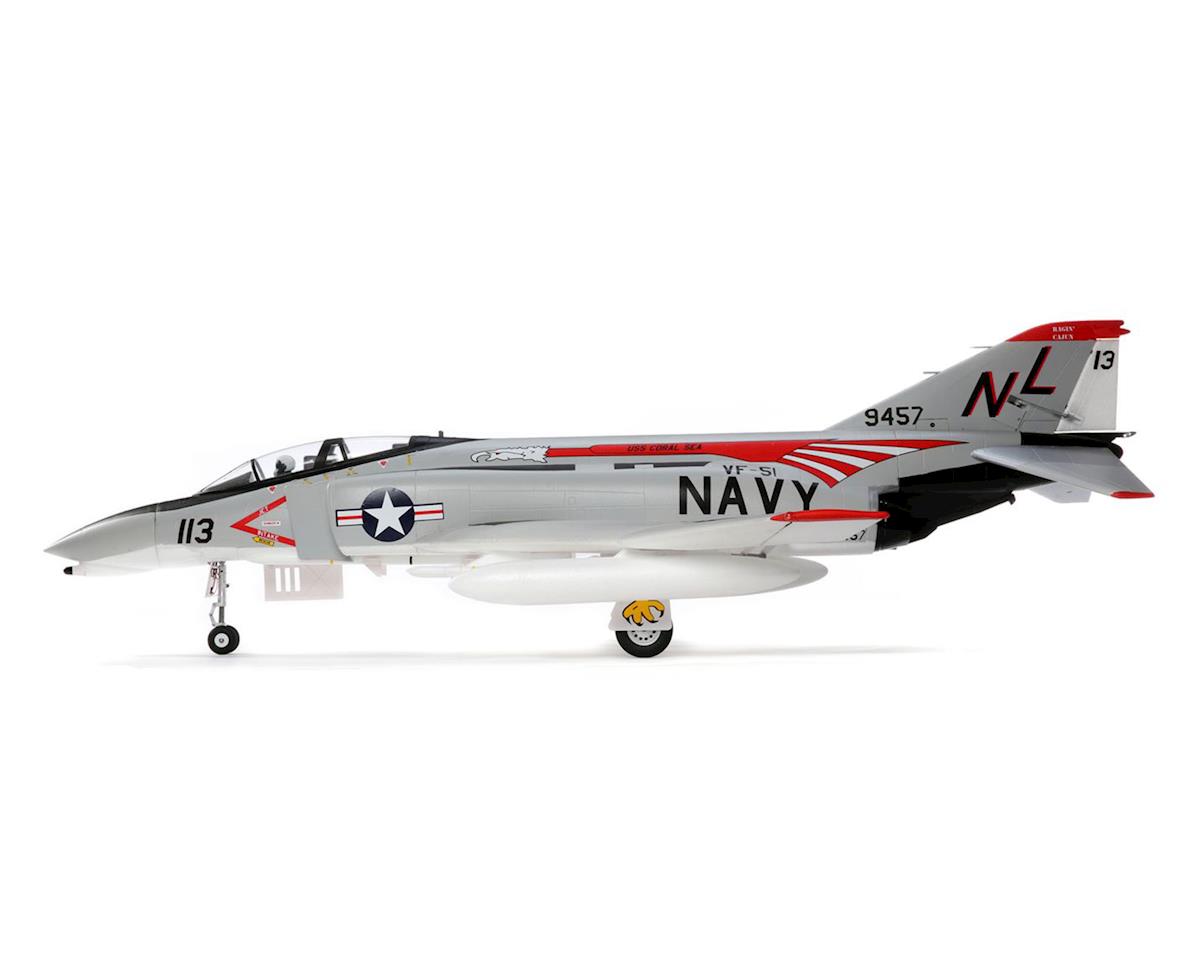

E-flite F-4 Phantom II 80mm EDF Jet is a replica of the awe-inspiring supersonic interceptor and fighter-bomber legend. It features an accurate outline and an abundance of Extra Scale details including molded-in panel lines and hatches, main gear strut covers, removable ordnance and tanks, plus a factory-applied finish that pays tribute to the VF-51 "Screaming Eagles inchsquadron. Functional Extra Scale features include LED landing and navigation lights, full-flying stabs, operational flaps and control surfaces with pocket hinges, sequenced nose gear doors and electric retracts with shock-absorbing struts so you can fly off a variety of surfaces, including grass fields. The 6S-compatible brushless inrunner motor and 100-amp ESC are perfectly matched to an 80mm 12-blade fan to deliver incredible thrust and speed, plus a turbine-like sound. It's also the easiest to assemble Phantom ever with a factory-finished EPO airframe that bolts together- no glue required- in less time than it takes to charge a battery. And it all adds up to deliver a unique flight experience with the best handling and performing F-4 model yet!
Features:
- The best handling high-performance F-4 Phantom EDF (Electric Ducted Fan) jet model yet
- Scale replica of the awe-inspiring and legendary supersonic interceptor and fighter-bomber
- Extra Scale details including removable ordnance and tanks, strut covers, molded-in panel lines and more
- Functional Extra Scale features including LED lights, full-flying stabs, flaps and sequenced nose gear doors
- 12-blade 80mm fan delivers excellent top speed and vertical performance plus turbine-like sound
- Factory-installed high-power 6S-compatible brushless inrunner motor and 100-amp ESC
- Spektrum 6-channel receiver with industry-leading DSMX technology
- Easier to fly with optional-use SAFE Select flight envelope protection
- The unmatched stability and precision of AS3X technology
- Factory-installed metal-geared servos with ball-link equipped linkages
- Electric retracts with shock-absorbing struts for operation from a variety of surfaces including grass
- No glue required for assembly and can be ready to fly in less time than it takes to charge a battery
- Two-piece wing with hands-free connection system and a magnetically-secured nose cone
- Convenient top hatch with clear canopy, cockpit detail and a pilot figure
- Factory-applied VF-51 "Screaming Eagles inchsquadron finish
- Durable yet lightweight, fully-molded EPO airframe
Includes:
- (1) E-flite F-4 Phantom II 80mm EDF Jet:
- (1) 100A Brushless ESC
- (1) Brushless Inrunner Motor
- (7) Metal-Geared Servos
- (1) Spektrum AR636 6-Channel Receiver
- (1) Product Manual
Specifications:
Wingspan: 35.8 inch(910mm)
Overall Length: 53.7 inch (1364mm)
Wing Area: 443.3 sq in (28.6 sq dm)
Flying Weight: 6.32 - 6.62lbs (2866 - 3006g)
Motor Size: 3270-2000Kv
Radio: 6-channel minimum (sold separately)
Servos: 7 Metal Geared
CG (center of gravity): 6.7 inch(170mm) back from leading edge of wing measured at the fuselage
Wing Loading: 33 - 43oz sq/in (100 - 105g sq/dm)
Prop Size: 3.1 inch(80mm) diameter EDF
Speed Control: 100A included
Recommended Battery: 6S 4000-5000mAh LiPo w/ EC5 connector
Aileron: Controlled by two 13g metal gear servos
Elevator: 13g metal gear servo control
Rudder: 13g metal gear servo control
Flaps: 13g metal gear servo control
Retracts: Yes, nose and main gear
Control Throw (Ailerons): 0.79 inch(20mm) High / 0.59 inch(15mm) Low
Control Throw (Elevator): Up 1.2 inch(30mm), Down 0.79 inch(20mm) High / Up 0.98 inch(25mm), Down 0.47 inch(12mm) Low
Control Throw (Rudder): 0.59 inch(15mm) High / 0.39 inch(10mm) High
Charger: sold separately
Is Assembly Required: No
Needed To Complete:
- Full-range 6-7+ channel DSMX/DSM2 transmitter
- 6S 22.2V 4000-5000+mAh 30+C LiPo with EC5 or IC5 Connector
- Compatible LiPo charger
